JHT has developed specialized control automation systems for commercial concrete, high-speed rail, engineering, dry powder mortar, bucket station mode, pipe pile station, asphalt station, etc. based on the different requirements of mixing plant equipment. There are Chinese, English, and Russian versions available. At the same time, customized development can be carried out according to the special process requirements of the equipment purchased by users.
JHT has launched a "maintenance free" mode, making system maintenance more convenient and efficient. Users can fully maintain the Kyle series control system on their own, thereby breaking the heavy reliance of end customers on industrial control system manufacturers.

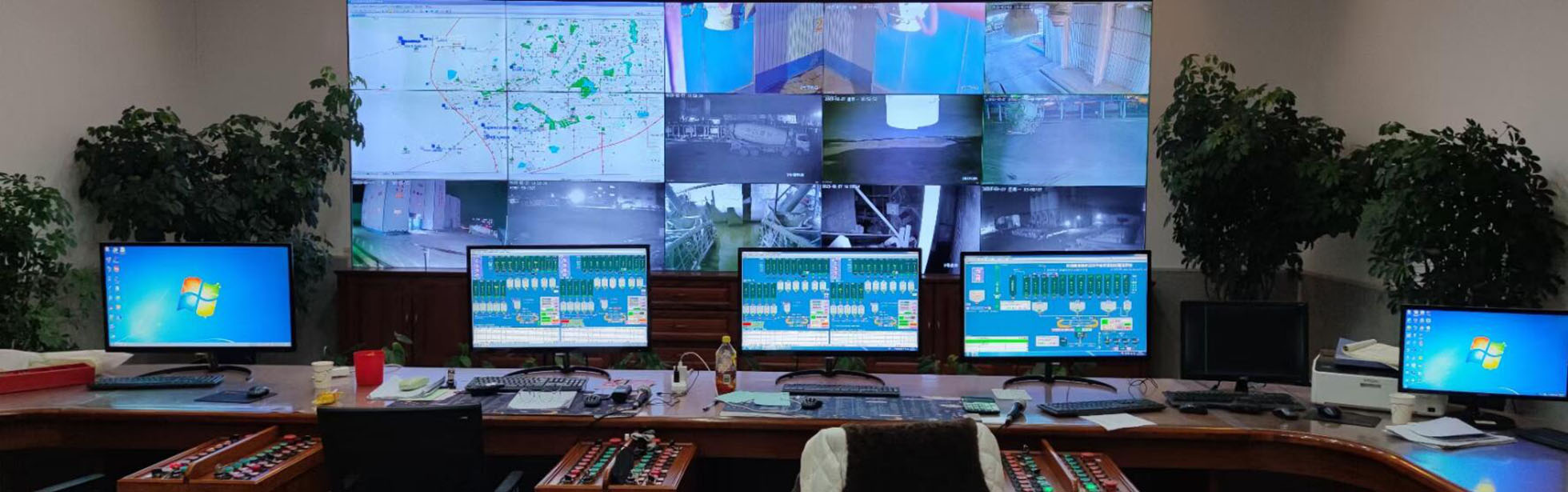

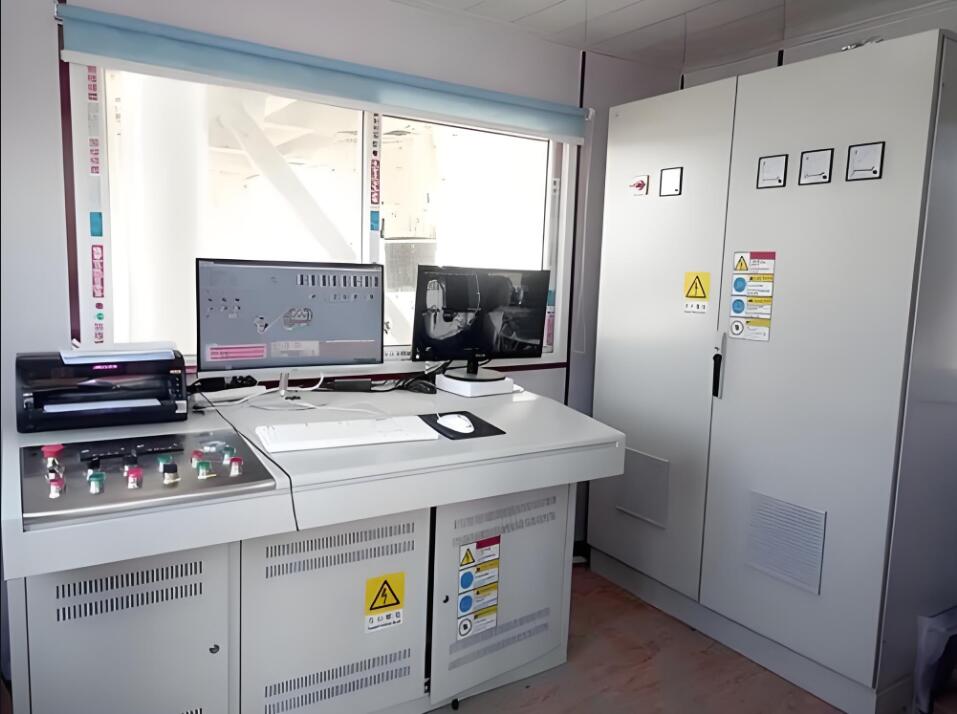

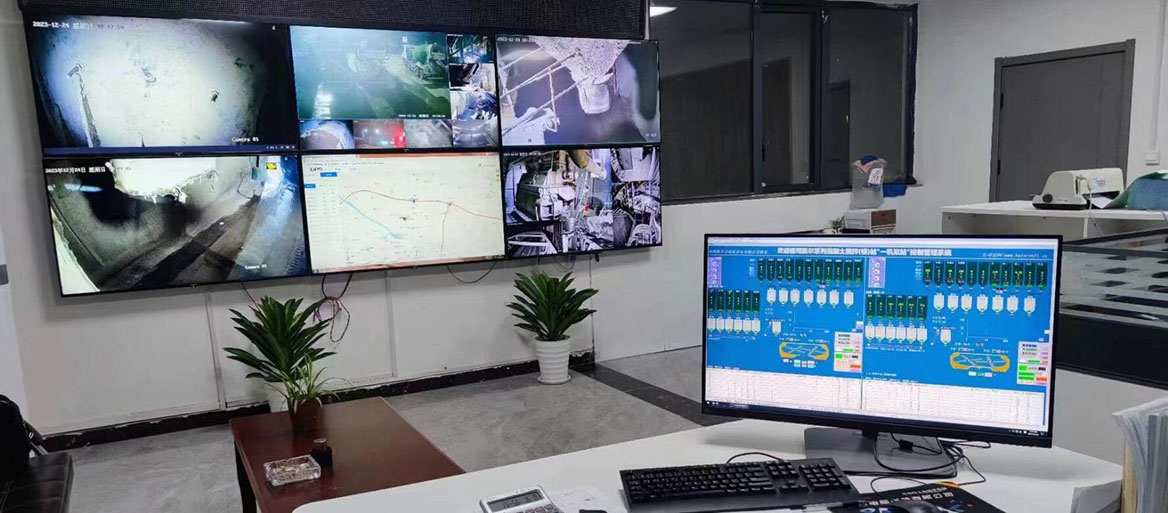

- The integrated management and control structure easily enables multiple production line control systems to be centralized in the same operating room, with laboratories, dispatchers, and operators working together, improving efficiency and saving human resources.
- The porting of control software does not require installation and can be directly copied and used, reducing maintenance difficulty, maintenance costs, and shortening maintenance time to quickly meet renovation needs.
- The automatic retrieval and classification function of task lists facilitates quick filtering of task lists.
- Continuous and uninterrupted production with different labels and vehicle quantities, and continuous automatic production with mortar on the same task order.
- The automatic intelligent allocation of vehicle volume and the arbitrary modification function of vehicle volume after production start greatly facilitate the needs of users.
- After each production is completed, the system will automatically lock the mixer door, so there is no need to worry that during continuous production, the concrete will be unloaded to the same truck, causing congestion.
- Simple and fast production scheduling and scheduling, operators only need to select the task list and vehicle quantity to be produced in the production window, and the system will automatically produce and provide prompts after production is completed, minimizing misoperations.
- In production, it is convenient and fast to input formulas and task orders. Different formulas can be set with different mixing times to meet the process requirements of different formulas; The reminder of the total weight of the formula ensures its reliability and accuracy.
- After the unloading of each material is completed, the next batch of ingredients is immediately carried out, greatly reducing the ingredient time and improving production efficiency; And it truly realizes automatic weighing of materials under balance and automatic weighing of materials over balance.
- Connected to the upper computer (PC or industrial control computer) through high-speed industrial Ethernet, it has high communication speed and fast response speed.
- The input/output channels and AD channels can be changed freely, and some hardware is damaged, which does not affect normal production; Replacing the hardware does not require any settings, and replacing the signal conditioning module does not require recalibration.

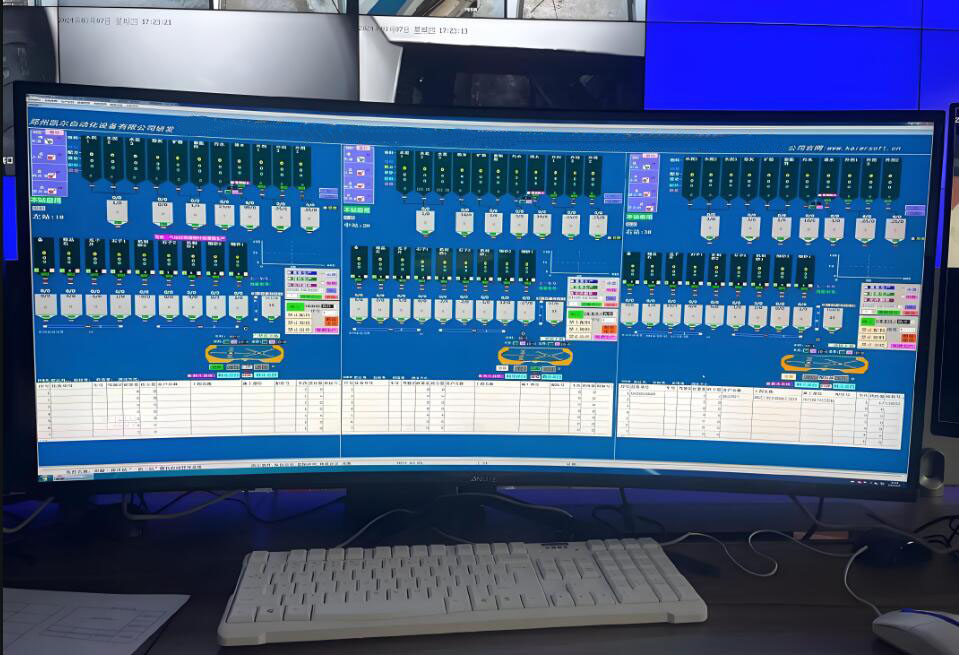

The “one machine, two controls, one machine, three controls” model was first introduced in the domestic industry, which adopts a production mode of one computer, one system, and one person controlling two or three mixing plants. Two or three mixing plants can be produced simultaneously or separately without interfering with each other. When producing the same task order at the same time, the cumulative supply of vehicles and quantities can be achieved without the involvement of ERP. This model further reduces the operating costs of concrete companies,
- Strict production process
Raw material rust removal, laser cutting, one layer of primer, three layers of topcoat (or hot-dip galvanizing) - Durable and sturdy
The heavy-duty H-beam chassis reduces the impact of vibration symmetry during the production process. The batching machine and weighing hopper are made of 6mm steel plate, and the water and gas pipelines are made of galvanized pipes - 7 * 24-hour work
Excellent performance accessories are the guarantee for long-term operation of equipment: BHS or SICOMA concrete mixers, ABB or Marathon motors, WAM powder accessories, AIRTAC pneumatic components, Schneider Electric - Control system saves 50% -70% of operators
Control software can enable one computer to control two production lines or three production lines. By using Ethernet cables to transmit signals, remote operation and production can be achieved
1. Design your own concrete mixing plant based on site and functional requirements
2. For those with manufacturing capabilities, JHT can provide technical drawings (overall or partial); Reduce transportation and procurement costs
3. Renovation of old concrete mixing plants: will increase productivity by 10-20%.
JHT adopts decentralized shared production; Centralized procurement of supporting parts; We have achieved a low price, high-quality service system.
