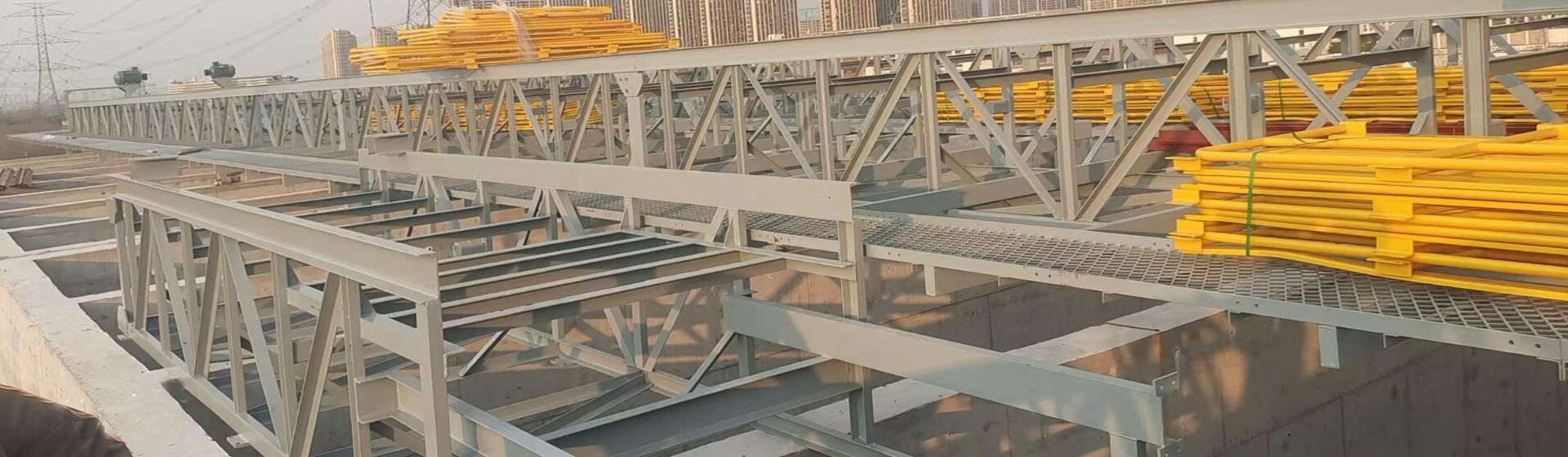

BELT CONVEYORS

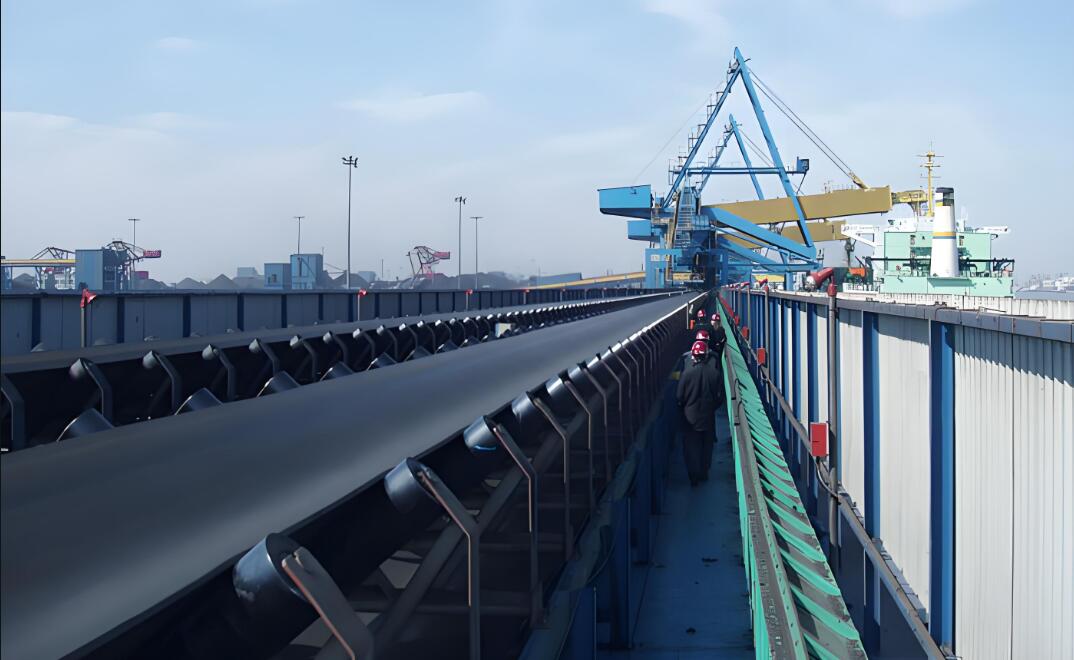

Belt conveyor is a continuous conveying equipment that uses conveyor belts as traction and load-bearing components to transport materials through the movement of conveyor belts that carry materials. Its structure is simple, operation is stable and reliable, energy consumption is low, environmental pollution is small, it is easy to control and achieve automation, management and maintenance are convenient, and it can achieve continuous transportation under continuous loading conditions. It is widely used in the fields of electricity, chemical industry, metallurgy, coal, etc., and is the most important modern bulk material conveying equipment.

BELT CONVEYORS / TECHNICAL SPECIFICATIONS

Mode	Conveying capacity (t/h)	Bandwidth	Belt speed	Conveying length	Obliquity	roller diameter	Roller diameter	Installed power
DTL50/10/30	100	650	1.63	400	±5°	Φ450	Φ89	30
DTL65/20/2Χ30	200	650	1.63	400	±5°	Φ450	Φ89	2Χ30
DTL65/20/2Χ37	200	650	1.63	500	±5°	Φ450	Φ89	2Χ37
DTL65/10/2Χ45	100	650	1.63	1000	±5°	Φ500	Φ89	2Χ45
DTL65/20/2Χ40	200	650	2	600	±5°	Φ500	Φ89	2Χ40
DTL80/30/2Χ30	300	800	1.63	500	±5°	Φ450	Φ89	2Χ30
DTL80/40/2Χ37	400	800	1.63	600	±5°	Φ450	Φ89	2Χ37
DTL80/40/2Χ45	400	800	1.63	600	±5°	Φ500	Φ89	2Χ45
DTL80/40/2Χ40	400	800	2	500	±5°	Φ500	Φ89	2Χ40
DTL80/40/2Χ55	400	800	2	700	±5°	Φ500	Φ89	2Χ55
DTL80/40/2Χ75	400	800	2	1000	0-2°	Φ630	Φ89	2Χ75
DTL80/40/2Χ90	400	800	2	1200	0-2°	Φ630	Φ89	2Χ90
DTL80/40/2Χ110	450	800	2	1300	0-2°	Φ630	Φ89	2Χ110
DTL100/50/2Χ40	500	1000	2	300	±5°	Φ500	Φ89	2Χ40
DTL100/50/2Χ55	500	1000	2	300	±5°	Φ500	Φ108	2Χ55
DTL100/63/2Χ75	630	1000	2	700	0-2°	Φ630	Φ108	2Χ75
DTL100/50/2Χ90	500	1000	2	1000	0-5°	Φ630	Φ108	2Χ90
DTL100/65/2Χ110	650	1000	2	1000	0-3°	Φ630	Φ108	2Χ110
DTL100/60/355S	600	1000	2.5	400	15°	Φ1000	Φ108	355S
DTL100/75/160S	750	1000	3	150	15°	Φ830	Φ108	160S
DTL100/90/185S	900	1000	3	150	15°	Φ830	Φ108	185S
DTL100/40/2Χ220S	400	1000	1.9	1000	0-14°	Φ830	Φ133	2Χ220
DTL100/75/2Χ220	750	1000	2.5	1100	±2°	Φ830	Φ108	2Χ220
DTL100/75/2Χ400	750	1000	2.5	2000	2-3°	Φ1000	Φ133	2Χ400
DTL120/80/2Χ90	800	1200	2.5	600	0-1°	Φ800	Φ133	2Χ90
DTL120/120/2Χ132	1200	1200	2.5	600	1-0°	Φ830	Φ133	2Χ132
DTL120/120/2Χ200	1200	1200	3.15	1100	±3°	Φ1030	Φ133	2Χ200
DTL120/150/2Χ315	1500	1200	3.15	1000	±3°	Φ1030	Φ133	2Χ315
DTL120/120/2Χ280S	1200	1200	3.15	600	0-14°	Φ1280	Φ133	2Χ280
DTL120/150/2Χ630S	1500	1200	3.15	1000	14-15°	Φ1280	Φ133	2Χ630
DTL120/120/2Χ400	1200	1200	3.15	1500	2-3°	Φ1280	Φ133	2Χ400
DTL120/120/2Χ500	1200	1200	3.15	2000	2-3°	Φ1280	Φ133	2Χ500
DTL120/200/3Χ630	2000	1200	3.15	1200	2-3°	Φ1280	Φ133	3Χ630
DTL140/200/2Χ315	2000	1400	3.15	1100	±3°	Φ1030	Φ159	2Χ315
DTL140/250/3Χ400S	2500	1400	3.15	600	14-15°	Φ1280	Φ159	3Χ400
DTL140/160/2Χ355	1600	1400	3.15	800	2-3°	Φ1280	Φ159	2Χ355
DTL140/200/2Χ500	2000	1400	3.15	900	2-3°	Φ1280	Φ159	2Χ500

WORKING PRINCIPLE

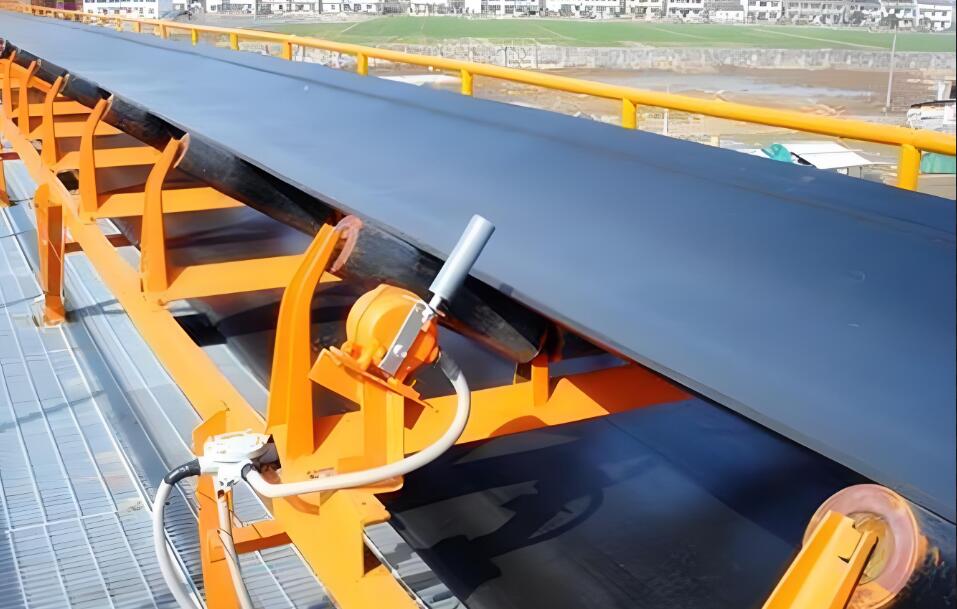

The belt conveyor mainly uses the conveyor belt as the load-bearing and the traction mechanism of the conveyor. The conveyor belt forms a tension ring belt from the head drum to the tail drum, and is supported on the carrier roller. The tension device provides the belt with the normal required tension. During the operation of the conveyor, the friction between the transmission drum and the contact surface of the conveyor drives the conveyor belt to move together

WHY CHOOSE JHT?

Strict production process
Raw material rust removal, laser cutting, one layer of primer, three layers of topcoat (or hot-dip galvanizing)
Durable and sturdy
The heavy-duty H-beam chassis reduces the impact of vibration symmetry during the production process. The batching machine and weighing hopper are made of 6mm steel plate, and the water and gas pipelines are made of galvanized pipes
7 * 24-hour work
Excellent performance accessories are the guarantee for long-term operation of equipment: BHS or SICOMA concrete mixers, ABB or Marathon motors, WAM powder accessories, AIRTAC pneumatic components, Schneider Electric
Control system saves 50% -70% of operators
Control software can enable one computer to control two production lines or three production lines. By using Ethernet cables to transmit signals, remote operation and production can be achieved

WHAT CAN JHT DO FOR YOU?

1. Design your own concrete mixing plant based on site and functional requirements
2. For those with manufacturing capabilities, JHT can provide technical drawings (overall or partial); Reduce transportation and procurement costs
3. Renovation of old concrete mixing plants: will increase productivity by 10-20%.
JHT adopts decentralized shared production; Centralized procurement of supporting parts; We have achieved a low price, high-quality service system.
