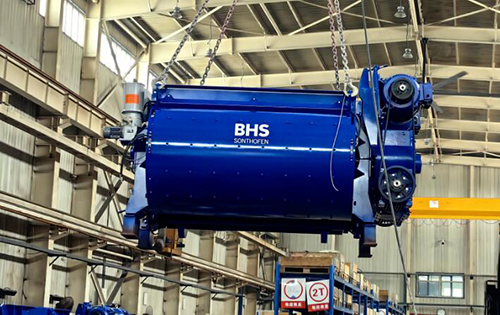

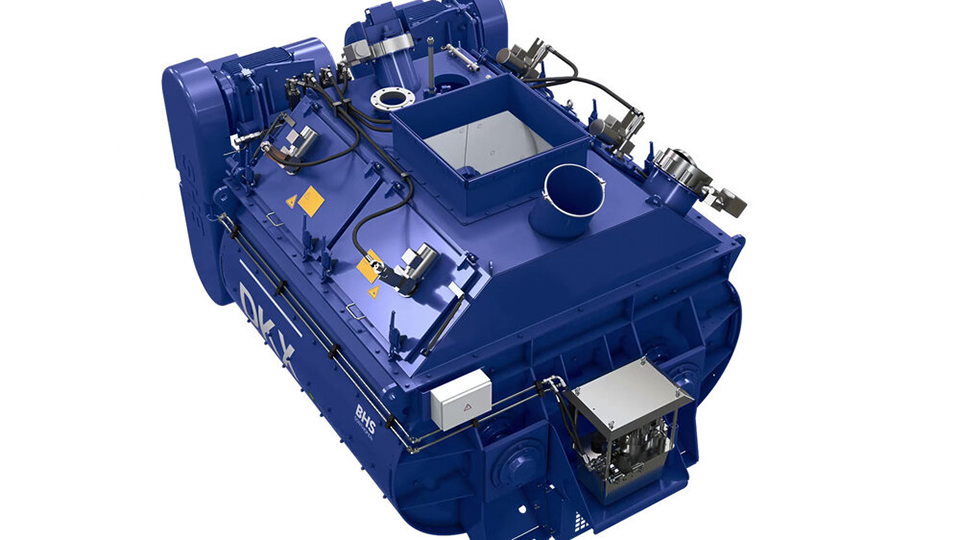

BHS-CONCRETE MIXER

Jinheng Machinery is a seller of BHS concrete mixers
This dual axis stirring technology is suitable for various formulas and provides comprehensive advantages for this. This mixing process has a decisive impact on the quality of the mixture produced and the economy of the manufacturing process. Please learn through the video how the dual shaft intermittent mixer can fully demonstrate its strength through large-scale projects worldwide under the most severe application conditions.

HIGHLIGHTS / BHS CONCRETE MIXER

Achieving stable high mixing uniformity in an extremely short mixing time
Quickly improve the uniformity of the mixture through sufficient material exchange
Each mixing cycle ensures stable consistency and uniformity
Optimal energy utilization rate
Achieving high stirring performance at low speeds
Maintain the particle structure of various formula ingredients
Due to the short mixing time, optimized agitator, efficient driving device, and extremely low energy consumption
Design decisions for low wear only
The low-speed and compact structure enables low wear of the mixing tool and mixing tank liner
Compared to disc or planetary mixers, wear is significantly reduced
Optimize the design of all vulnerable parts
Efficient concrete production
Completely crush the adhesive in a short period of time
Can save adhesive
Distribute the added materials and additives evenly and quickly throughout the entire mixture
Can handle small batches with a rated filling volume exceeding 10%
Future Safety of Modern Concrete Formulas
Can perform mixing and stirring cycles (slow fast slow)

MODE	Dry materials Filling amount	Compacted concrete Discharge capacity Each batch	Maximum production of compacted concrete				Standard configuration Motor power	Maximum aggregate particle size
MODE	Dry materials Filling amount	Compacted concrete Discharge capacity Each batch	Concrete tanker truck unloading		Unloading by dump trucks		Standard configuration Motor power	Normal concrete	Hydraulic concrete
DKX 0.50	0,75 m³	0,5 m³	73 Cycles / hour	37 m³/h	73 Cycles / hour	37 m³/h	15 kW	64 mm	–
DKX 0.75	1,13 m³	0,75 m³	65 Cycles / hour	49 m³/h	65 Cycles / hour	49 m³/h	22 kW	64 mm	–
DKX 1.00	1,5 m³	1 m³	58 Cycles / hour	58 m³/h	60 Cycles / hour	60 m³/h	37 kW	64 mm	80 mm
DKX 1.25	1,88 m³	1,25 m³	53 Cycles / hour	66 m³/h	53 Cycles / hour	66 m³/h	45 kW	64 mm	125 mm
DKX 1.67	2,51 m³	1,67 m³	48 Cycles / hour	80 m³/h	49 Cycles / hour	82 m³/h	55 kW	64 mm	125 mm
DKX 2.00	3 m³	2 m³	49 Cycles / hour	98 m³/h	53 Cycles / hour	106 m³/h	65 kW	64 mm	150 mm
DKX 2.25	3,38 m³	2,25 m³	46 Cycles / hour	104 m³/h	50 Cycles / hour	113 m³/h	65 kW	64 mm	150 mm
DKX 2.50	3,75 m³	2,5 m³	48 Cycles / hour	120 m³/h	56 Cycles / hour	140 m³/h	75 kW	64 mm	150 mm
DKX 2.75	4,13 m³	2,75 m³	46 Cycles / hour	127 m³/h	55 Cycles / hour	151 m³/h	2 x 45 kW	64 mm	150 mm
DKX 3.00	4,5 m³	3 m³	44 Cycles / hour	132 m³/h	53 Cycles / hour	159 m³/h	2 x 55 kW	64 mm	150 mm
DKX 3.33	5 m³	3,33 m³	41 Cycles / hour	137 m³/h	50 Cycles / hour	167 m³/h	2 x 65 kW	64 mm	150 mm
DKX 3.50	5,25 m³	3,5 m³	42 Cycles / hour	147 m³/h	52 Cycles / hour	182 m³/h	2 x 55 kW	64 mm	160 mm
DKX 4.00	6 m³	4 m³	39 Cycles / hour	156 m³/h	49 Cycles / hour	196 m³/h	2 x 65 kW	64 mm	160 mm
DKX 4.50	6,75 m³	4,5 m³	37 Cycles / hour	167 m³/h	51 Cycles / hour	230 m³/h	2 x 75 kW	64 mm	160 mm
DKX 5.00	7,5 m³	5 m³	35 Cycles / hour	175 m³/h	50 Cycles / hour	250 m³/h	2 x 90 kW	64 mm	160 mm
DKX 6.00	9 m³	6 m³	31 Cycles / hour	186 m³/h	48 Cycles / hour	288 m³/h	2 x 110 kW	64 mm	160 mm
DKX 7.00	10,5 m³	7 m³	28 Cycles / hour	196 m³/h	44 Cycles / hour	308 m³/h	4 x 75 kW	64 mm	160 mm
DKX 8.00	12 m³	8 m³	26 Cycles / hour	208 m³/h	43Cycles / hour	344 m³/h	4 x 90 kW	64 mm	160 mm
DKX 9.00	13,5 m³	9 m³	24 Cycles / hour	216 m³/h	43 Cycles / hour	387 m³/h	4 x 110 kW	64 mm	180 mm

WHY CHOOSE JHT?

Strict production process
Raw material rust removal, laser cutting, one layer of primer, three layers of topcoat (or hot-dip galvanizing)
Durable and sturdy
The heavy-duty H-beam chassis reduces the impact of vibration symmetry during the production process. The batching machine and weighing hopper are made of 6mm steel plate, and the water and gas pipelines are made of galvanized pipes
7 * 24-hour work
Excellent performance accessories are the guarantee for long-term operation of equipment: BHS or SICOMA concrete mixers, ABB or Marathon motors, WAM powder accessories, AIRTAC pneumatic components, Schneider Electric
Control system saves 50% -70% of operators
Control software can enable one computer to control two production lines or three production lines. By using Ethernet cables to transmit signals, remote operation and production can be achieved

WHAT CAN JHT DO FOR YOU?

1. Design your own concrete mixing plant based on site and functional requirements
2. For those with manufacturing capabilities, JHT can provide technical drawings (overall or partial); Reduce transportation and procurement costs
3. Renovation of old concrete mixing plants: will increase productivity by 10-20%.
JHT adopts decentralized shared production; Centralized procurement of supporting parts; We have achieved a low price, high-quality service system.
