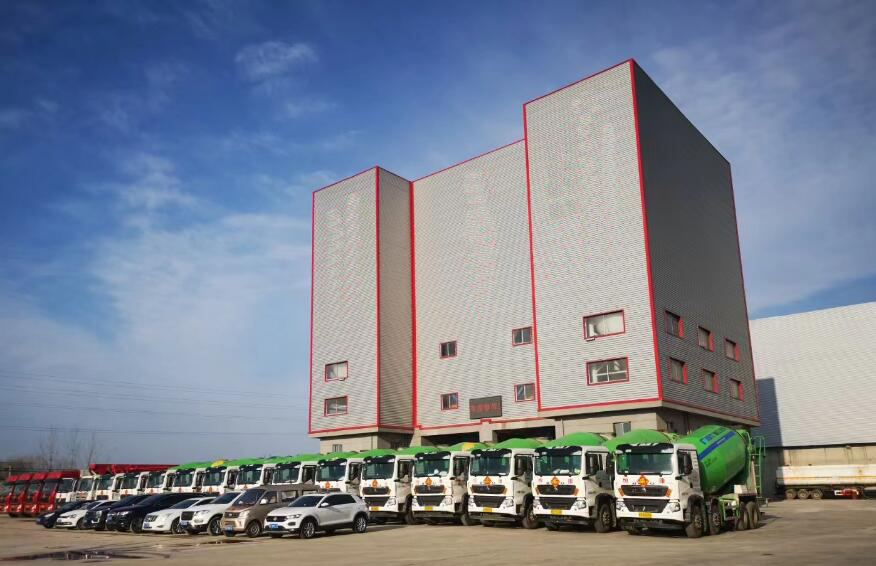

Tower Concrete Batching Plants

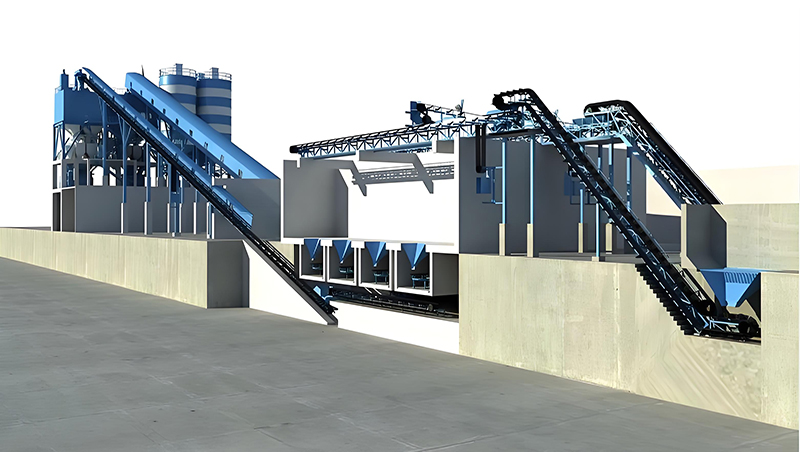

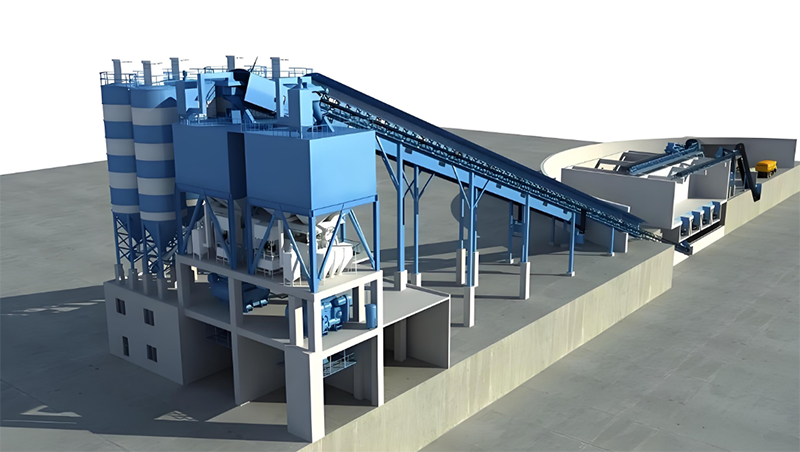

The tower concrete batching plants developed by JHT can provide high-capacity storage in compact areas and adopts a modular design. Due to its modular design, the JHT tower concrete batching plant is a high-performance equipment that can be transported using conveyors or elevators depending on the conditions of the installation area. A factory designed for the production of ready mixed concrete and the production of precast concrete components and products.

Due to the option of complete insulation and sealing, concrete can be produced year-round even in cold weather conditions.

TECHNICAL SPECIFICATIONS/TOWER CONCRETE BATCHING PLANT
Model HLS120 HLS180 HLS200 HLS225 HLS250 HLS300
Theoretical productivity(m³/h) 100 150 200 225 250 300
Mixer Model JS2000 JS3000 JS4500 JS4500 JS5000 JS6000
Discharge volume (L) 2000 3000 4500 4500 5000 6000
Aggregate size (mm) ≤80
Aggregate bin on main tower Bin volume (m³) 30×6(Or 45×4) 50×6(Or 75×4)
Conveyor capacity of inclined belt conveyor(t/h) 500 600 900
Scale range & accuracy Stone scale (kg) (800-2400)±2% (1200-3600)±2% (1600-4800)±2% (1800-5400)±2% (2000-6000)±2% (2400-7200)±2%
Sand scale (kg) (500-1600)±2% (800-2400)±2% (1050-3200)±2% (1200-3600)±2% (1300-4000)±2% (1600-4800)±2%
Cement scale (kg) (400-1200)±1% (600-1800)±1% (800-2400)±1% (900-2700)±1% (1000-3000)±1% (1200-3600)±1%
Fly ash scale (kg) (130-400)±1% (200-600)±1% (250-800)±1% (300-900)±1% (300-1000)±1% (400-1200)±1%
Water scale (kg) (150-500)±1% (250-800)±1% (400-1200)±1%
Additivescale (kg) (15-50)±1% (25-80)±1% (40-120)±1% (60-180)±1%
Discharge height (m) 4.1
HIGHLIGHTS / TOWER CONCRETE BATCHING PLANT
  • There are 4 or 6 aggregate silos upstairs, which saves time waiting for transportation during the mixing process and improves mixing efficiency. The upstairs rotating material sorting system has a long service life and is suitable for various production processes such as mortar wrapping and secondary feeding.
  • Adopting a pulse bag filter, the dust removal efficiency can reach 99.9%, and the maintenance cost is low; Large scale fans actively extract air and remove dust, which can balance the pressure of various systems in the main building, ensuring measurement accuracy and cutting speed.
  • The mixing efficiency of twin-screw belt mixer is 15% higher than that of ordinary mixer. The average strength of concrete has increased by 10%. In terms of energy consumption, it saves 20% compared to traditional forced mixing. It can produce any type of concrete (precast concrete, CVC, ready mixed concrete).
  • The high-precision measuring system can accurately weigh cement, powder, additives, and sand and gravel materials, effectively ensuring the quality and safety of concrete (all weighing is equipped with a secondary weighing system).
  • Fully galvanized heavy-duty steel structures can achieve extremely high durability, safe transportation, and continuous long-term operation. Minimize the vibration of the scale as much as possible to achieve sensitive weighing.
  • The porting of control software does not require installation and can be directly copied and used, reducing maintenance difficulty, lowering maintenance costs, shortening maintenance time, and quickly meeting transformation needs.
WHY CHOOSE JHT?
  1.  Strict production process
    Raw material rust removal, laser cutting, one layer of primer, three layers of topcoat (or hot-dip galvanizing)
  2. Durable and sturdy
    The heavy-duty H-beam chassis reduces the impact of vibration symmetry during the production process. The batching machine and weighing hopper are made of 6mm steel plate, and the water and gas pipelines are made of galvanized pipes
  3. 7 * 24-hour work
    Excellent performance accessories are the guarantee for long-term operation of equipment: BHS or SICOMA concrete mixers, ABB or Marathon motors, WAM powder accessories, AIRTAC pneumatic components, Schneider Electric
  4. Control system saves 50% -70% of operators
    Control software can enable one computer to control two production lines or three production lines. By using Ethernet cables to transmit signals, remote operation and production can be achieved
WHAT CAN JHT DO FOR YOU?

1. Design your own concrete mixing plant based on site and functional requirements
2. For those with manufacturing capabilities, JHT can provide technical drawings (overall or partial); Reduce transportation and procurement costs
3. Renovation of old concrete mixing plants: will increase productivity by 10-20%.
JHT adopts decentralized shared production; Centralized procurement of supporting parts; We have achieved a low price, high-quality service system.
