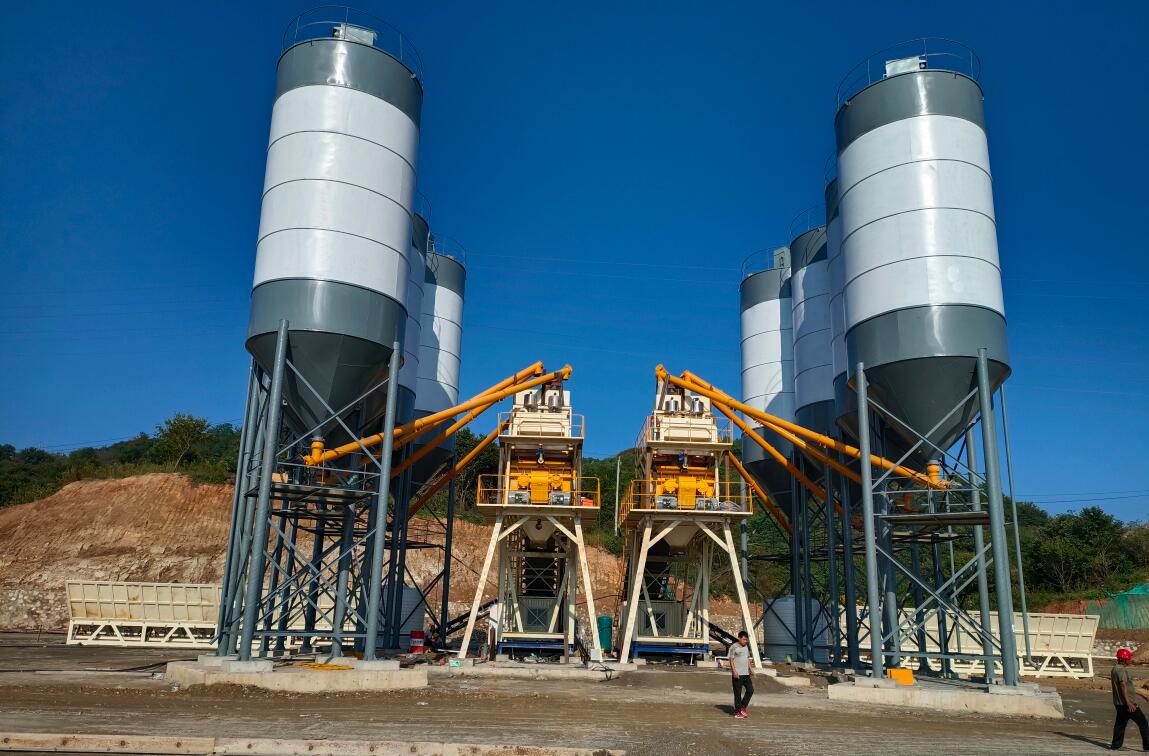

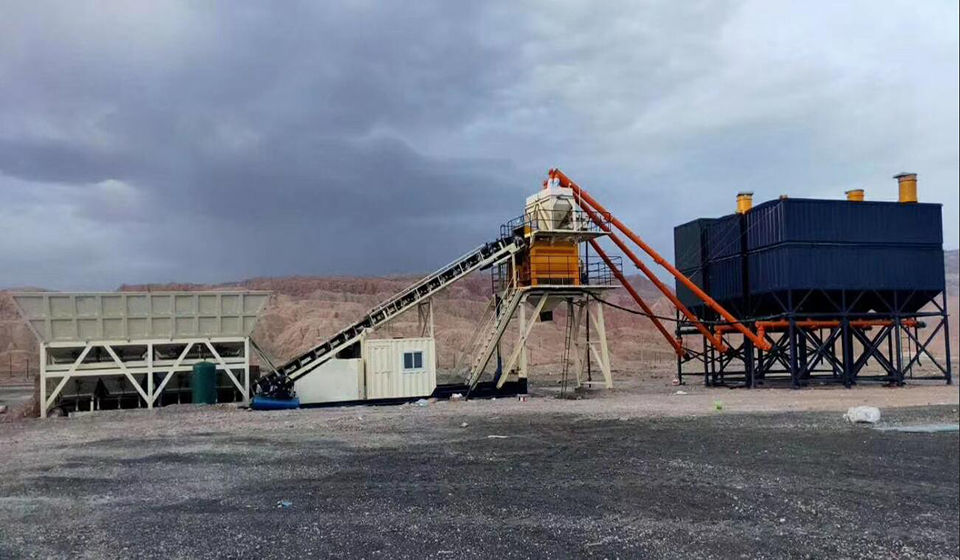

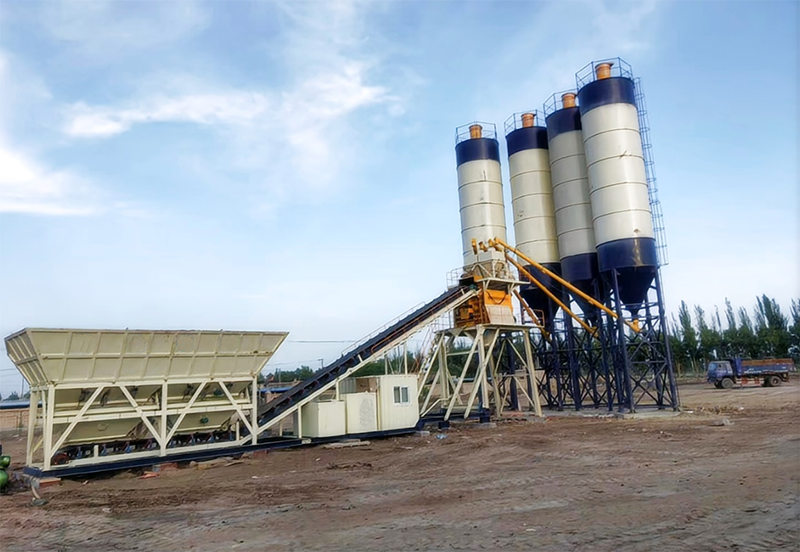

Compact Concrete Batching Plants

Compact concrete batching plants, quick installation in 7 days, including models 60, 90, 120, etc., with a production capacity of 50-120m ³/h. The compact concrete batching plants adopts modular and foundation free design. The modular pre installation of ingredients, conveying, metering, and mixing systems effectively reduces the volume of sea transportation while minimizing the footprint, facilitating quick on-site installation and production, significantly reducing the need for on-site foundation construction and hoisting, and suitable for small and medium-sized projects with small sites and close distances.

TECHNICAL SPECIFICATIONS
Model HZS60 HZS90 HZS120 HZS180 HZS240 HZS270
Mixer Model JS1000 JS1500 JS2000 JS3000 JS4000 JS4500
Discharge volume(L) 1000L 1500L 2000L 3000L 4000L 4500L
Aggregate  size(mm) ≤60mm ≤80mm
Batch station Bin volume(m³) 15×4 20×4
Belt width of inclined belt conveyor Trough belt B800 Trough belt B1000 flat belt B1200
Scale rang & accuracy Stone scale(kg) (360-1200)±2% (540-1800)±2% (720-2400)±2% (1080-3600)±2% (1440-4800)±2% (1620-5400)±2%
Sand scale(kg) (240-800)±2% (360-1200)±2% (480-1600)±2% (720-2400)±2% (960-3200)±2% (1080-3600)±2%
Cement scale(kg) (180-600)±1% (270-900)±1% (360-1200)±1% (540-1800)±1% (720-2400)±1% (810-2700)±1%
Fly ash scale(kg) (60-200)±1% (90-300)±1% (120-400)±1% (180-600)±1% (240-800)±1% (270-900)±1%
Water scale(kg) (90-300)±1% (150-500)±1% (240-800)±1% (360-1200)±1%
Additve scale(kg) (15-50)±1% (24-80)±1% (36-120)±1%
Discharging height(m) 4m 4.2m
HIGHLIGHTS
  • Mixing machine
    The mixing efficiency of twin-screw belt mixer is 15% higher than that of ordinary mixer. The average strength of concrete has increased by 10%. In terms of energy consumption, it saves 20% compared to conventional forced mixing. Can produce any type of concrete (precast concrete, CVC, ready mixed concrete).
  • Precision measurement and weighing system
    The high-precision measurement system can accurately weigh cement, powder, additives, and sand and gravel materials, effectively ensuring the quality and safety of concrete (all weighing is equipped with a secondary weighing system).
  • Hot dip galvanized structure
    Fully galvanized heavy-duty steel structure (without foundation design) can achieve extremely high durability, safe transportation, and continuous long-term operation. Minimize the vibration of the scale to achieve sensitive weighing.
  • Intelligent powder conveying system
    At the ash discharge port, there is a screen that can accurately display the inventory of powder at the ash discharge port, allowing staff to have a more timely and intuitive understanding of the warehouse’s storage capacity, thereby guiding whether to feed and ensuring smooth production.
  • Maintenance free control system
    The porting of control software does not require installation and can be directly copied and used, reducing maintenance difficulty, lowering maintenance costs, shortening maintenance time, and quickly meeting transformation needs.
  • Suitable for container transportation
    Worried about transportation costs? Don’t worry about being too far away or having high transportation costs to supply or purchase suitable concrete mixing plants, as our design is compact and suitable for standard 40’OT containers.
WHY CHOOSE JHT?
  1.  Strict production process
    Raw material rust removal, laser cutting, one layer of primer, three layers of topcoat (or hot-dip galvanizing)
  2. Durable and sturdy
    The heavy-duty H-beam chassis reduces the impact of vibration symmetry during the production process. The batching machine and weighing hopper are made of 6mm steel plate, and the water and gas pipelines are made of galvanized pipes
  3. 7 * 24-hour work
    Excellent performance accessories are the guarantee for long-term operation of equipment: BHS or SICOMA concrete mixers, ABB or Marathon motors, WAM powder accessories, AIRTAC pneumatic components, Schneider Electric
  4. Control system saves 50% -70% of operators
    Control software can enable one computer to control two production lines or three production lines. By using Ethernet cables to transmit signals, remote operation and production can be achieved
WHAT CAN JHT DO FOR YOU?

1. Design your own concrete mixing plant based on site and functional requirements
2. For those with manufacturing capabilities, JHT can provide technical drawings (overall or partial); Reduce transportation and procurement costs
3. Renovation of old concrete mixing plants: will increase productivity by 10-20%.
JHT adopts decentralized shared production; Centralized procurement of supporting parts; We have achieved a low price, high-quality service system.
