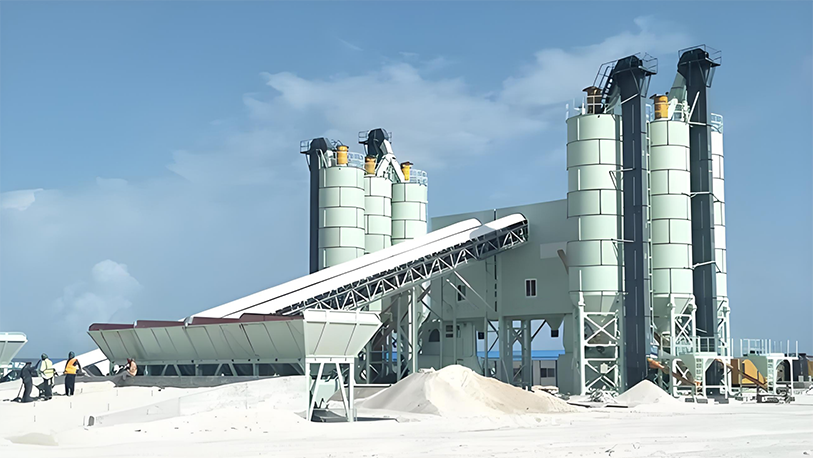

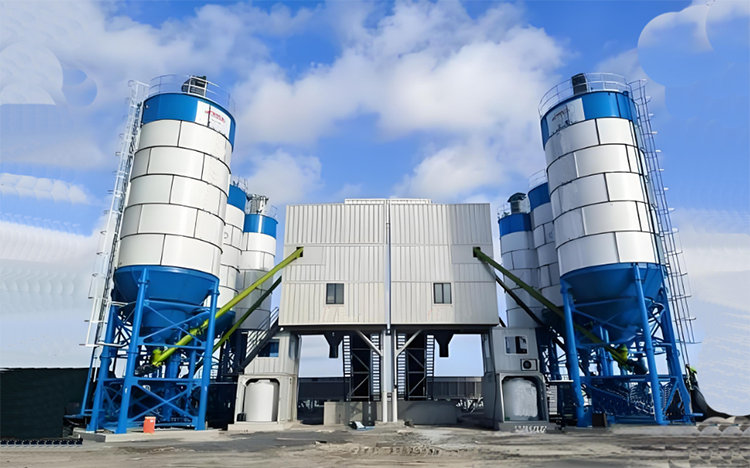

Stationary Concrete Batching Plants

JHT's stationary concrete batching plants. It has the maximum capacity, flexibility, efficiency, and reliability, and can produce various high-quality products on a large scale. This is mainly reflected in the aspects of green environmental protection, low-carbon energy saving, high efficiency, and information intelligence during the operation of the equipment. The various emissions (gases, liquids, solids) and noise generated during the production process comply with environmental standards, not only solving pollution problems, but also improving material utilization efficiency, achieving a win-win situation of ecological and economic benefits.

TECHNICAL SPECIFICATIONS
Model HZS120 HZS180 HZS200 HZS225 HZS250 HZS300
Theoretical productivity(m³/h) 100 150 200 225 250 300
Mixer Model JS2000 JS3000 JS4000 JS4500 JS5000 JS6000
Discharge volume (L) 2000 3000 4000 4500 5000 6000
Aggregate size (mm) ≤80
Batching station Bin volume (m³) 4 storehouses
Conveyor capacity of inclined belt conveyor(t/h) 500 600 900 1200
Scale range & accuracy Stone scale (kg) (800-2400)±2% (1200-3600)±2% (1600-4800)±2% (1800-5400)±2% (2000-6000)±2% (2400-7200)±2%
Sand scale (kg) (500-1600)±2% (800-2400)±2% (1050-3200)±2% (1200-3600)±2% (1300-4000)±2% (1600-4800)±2%
Cement scale (kg) (400-1200)±1% (600-1800)±1% (800-2400)±1% (900-2700)±1% (1000-3000)±1% (1200-3600)±1%
Fly ash scale (kg) (130-400)±1% (200-600)±1% (250-800)±1% (300-900)±1% (300-1000)±1% (400-1200)±1%
Water scale (kg) (150-500)±1% (250-800)±1% (400-1200)±1%
Additivescale (kg) (15-50)±1% (25-80)±1% (40-120)±1% (60-180)±1%
Discharge height (m) 4.1 4.2
HIGHLIGHTS
  • Mixing machine
    The mixing efficiency of twin-screw belt mixer is 15% higher than that of ordinary mixer. The average strength of concrete has increased by 10%. In terms of energy consumption, it saves 20% compared to conventional forced mixing. Can produce any type of concrete (precast concrete, CVC, ready mixed concrete).
  • Precision measurement and weighing system
    The high-precision measurement system can accurately weigh cement, powder, additives, and sand and gravel materials, effectively ensuring the quality and safety of concrete (all weighing is equipped with a secondary weighing system).
  • Hot dip galvanized structure
    Fully galvanized heavy-duty steel structure can achieve extremely high durability, safe transportation, and continuous long-term operation. Minimize the vibration of the scale to achieve sensitive weighing.
  • Intelligent powder conveying system
    At the ash discharge port, there is a screen that can accurately display the inventory of powder at the ash discharge port, allowing staff to have a more timely and intuitive understanding of the warehouse’s storage capacity, thereby guiding whether to feed and ensuring smooth production.
  • Maintenance free control system
    The porting of control software does not require installation and can be directly copied and used, reducing maintenance difficulty, lowering maintenance costs, shortening maintenance time, and quickly meeting transformation needs.
  • Suitable for container transportation
    Worried about transportation costs? Don’t worry about being too far away or having high transportation costs to supply or purchase suitable concrete mixing plants, as our design is compact and suitable for standard 40’OT containers.
WHY CHOOSE JHT?
  1.  Strict production process
    Raw material rust removal, laser cutting, one layer of primer, three layers of topcoat (or hot-dip galvanizing)
  2. Durable and sturdy
    The heavy-duty H-beam chassis reduces the impact of vibration symmetry during the production process. The batching machine and weighing hopper are made of 6mm steel plate, and the water and gas pipelines are made of galvanized pipes
  3. 7 * 24-hour work
    Excellent performance accessories are the guarantee for long-term operation of equipment: BHS or SICOMA concrete mixers, ABB or Marathon motors, WAM powder accessories, AIRTAC pneumatic components, Schneider Electric
  4. Control system saves 50% -70% of operators
    Control software can enable one computer to control two production lines or three production lines. By using Ethernet cables to transmit signals, remote operation and production can be achieved
WHAT CAN JHT DO FOR YOU?

1. Design your own concrete mixing plant based on site and functional requirements
2. For those with manufacturing capabilities, JHT can provide technical drawings (overall or partial); Reduce transportation and procurement costs
3. Renovation of old concrete mixing plants: will increase productivity by 10-20%.
JHT adopts decentralized shared production; Centralized procurement of supporting parts; We have achieved a low price, high-quality service system.
