JS1500 is a widely used high-efficiency concrete mixer that uses motorized discharge and can be used in conjunction with a dump truck. It mainly consists of a mixing drum, hopper loading frame, winding mechanism, mixing drum, mixing blades, mixing shaft, mixing arm, frame, discharge mechanism, oil and water supply system, and electrical system. Suitable for mixing plastic, dry hard, lightweight aggregate concrete, as well as various mortar and mortar, it is an ideal machine for various construction sites.
Widely used in large and medium-sized prefabricated component factories, as well as industrial and civil construction projects such as highways, bridges, water conservancy, docks, etc
| Model | JS1500 | |
| Discharge capacity | 1500L | |
| Feed capacity | 2400L | |
| Theoretical production capacity (m3/h) | ≈35 | |
| Maximum aggregate particle size (pebbles/crushed stones) | ≤60/80 | |
| Work cycle time (S) | 72 | |
| Overall weight (kg) | 11130 | |
| External dimensions (length x width x height) (mm) | Transportation status | 4220X2200X3000 |
| Mixing blade | speed | 23.5r/min |
| quantity | 2X8 | |
| Mixing motor | model | Y180m-4 |
| Power (kW) | 2*18.5 | |
| Winch motor | model | YEZ160l-4 |
| Power (kW) | 18.5 | |
| Water pump motor | model | 80jd8-45 |
| Power (kW) | 3 | |

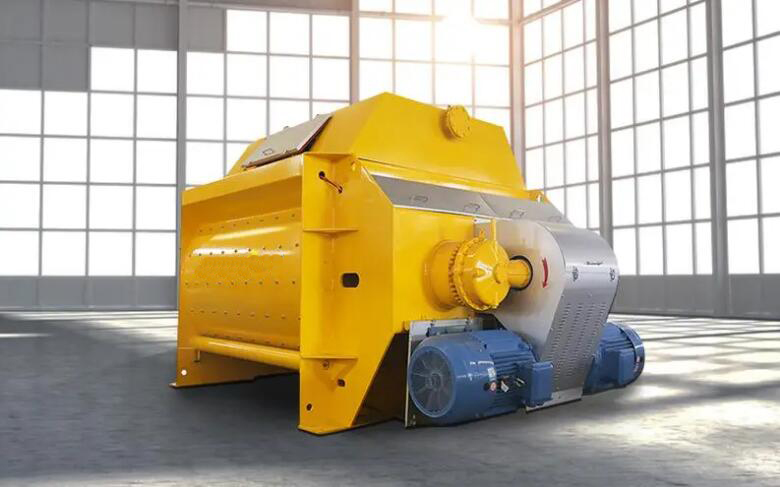

The JS1500 double horizontal axis forced concrete mixer is currently an advanced and ideal model at home and abroad, with advantages such as high automation, good mixing quality, high efficiency, low energy consumption, low noise, easy operation, fast unloading speed, long service life of lining plates and blades, and convenient maintenance. This machine adopts an automatic discharge method, and the whole machine has the advantages of convenient water addition control, strong power, low power consumption, and strong power. In addition, it is equipped with a built-in eddy current mixer to prevent material agglomeration in the silo.

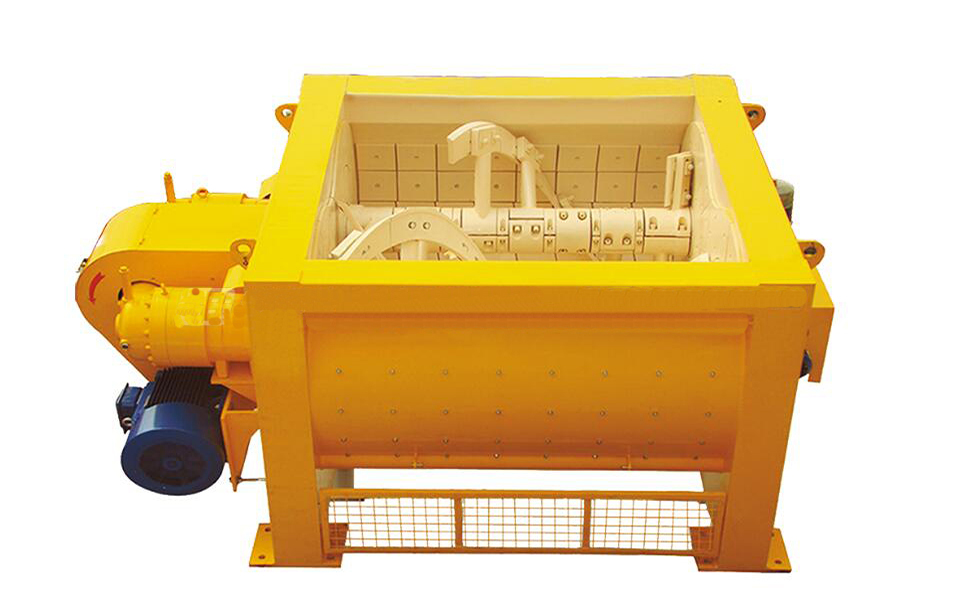

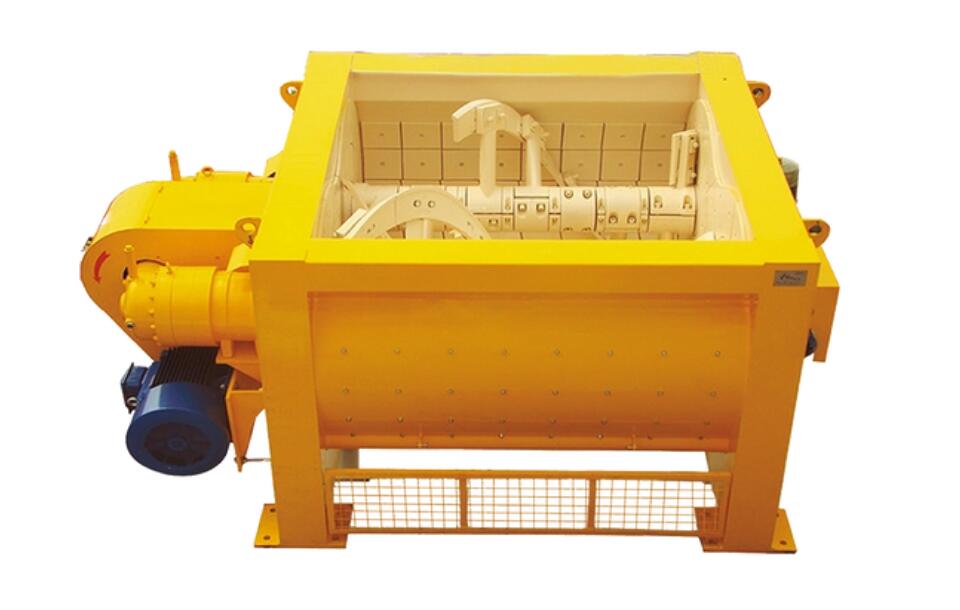

The JS1500 concrete mixer is a spiral belt structure composed of two mixing blades on the mixing shaft, which creates a three-dimensional mixing effect along the radial and axial directions. It can form a comprehensive effect of pushing, rubbing, and squeezing materials, achieving a high uniformity mixing effect in a short time and low energy consumption. Suitable for mixing plastic, dry hard, lightweight aggregate concrete, and various mortars and mortars.
- Strict production process
Raw material rust removal, laser cutting, one layer of primer, three layers of topcoat (or hot-dip galvanizing) - Durable and sturdy
The heavy-duty H-beam chassis reduces the impact of vibration symmetry during the production process. The batching machine and weighing hopper are made of 6mm steel plate, and the water and gas pipelines are made of galvanized pipes - 7 * 24-hour work
Excellent performance accessories are the guarantee for long-term operation of equipment: BHS or SICOMA concrete mixers, ABB or Marathon motors, WAM powder accessories, AIRTAC pneumatic components, Schneider Electric - Control system saves 50% -70% of operators
Control software can enable one computer to control two production lines or three production lines. By using Ethernet cables to transmit signals, remote operation and production can be achieved
1. Design your own concrete mixing plant based on site and functional requirements
2. For those with manufacturing capabilities, JHT can provide technical drawings (overall or partial); Reduce transportation and procurement costs
3. Renovation of old concrete mixing plants: will increase productivity by 10-20%.
JHT adopts decentralized shared production; Centralized procurement of supporting parts; We have achieved a low price, high-quality service system.
