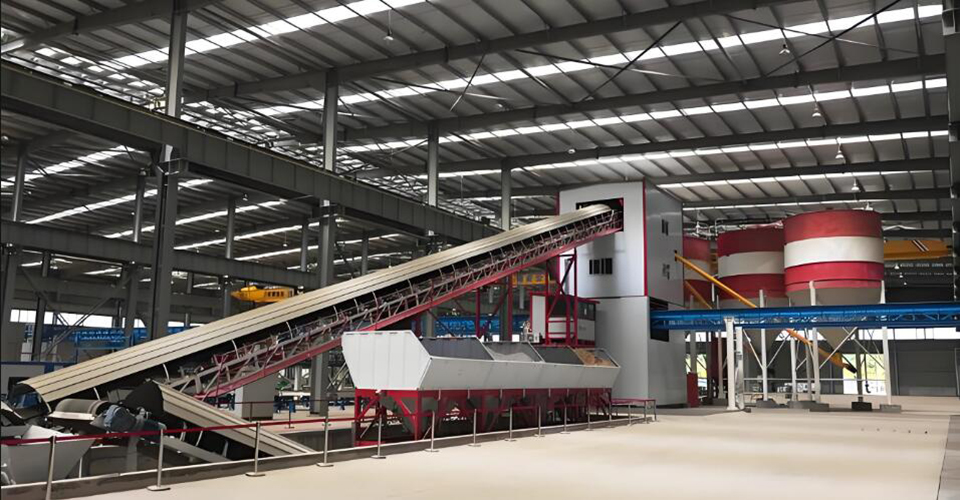

PC-180 precast concrete batching plants provide high-quality and effective solutions for the precast industry that requires concrete.

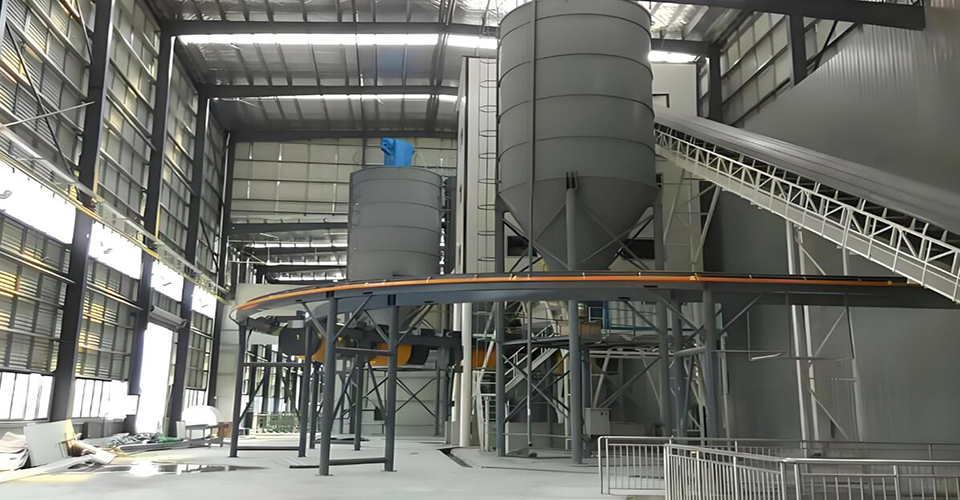

Special solutions include a stepped concrete batching plant, aggregate storage silos and mixers arranged side by side, as well as a tower concrete batching plant. The aggregate storage bin is located above the mixing device. One or more mixers of different capacities can be configured, and customized designs and specific transfer methods can be made based on the factory layout and product type.

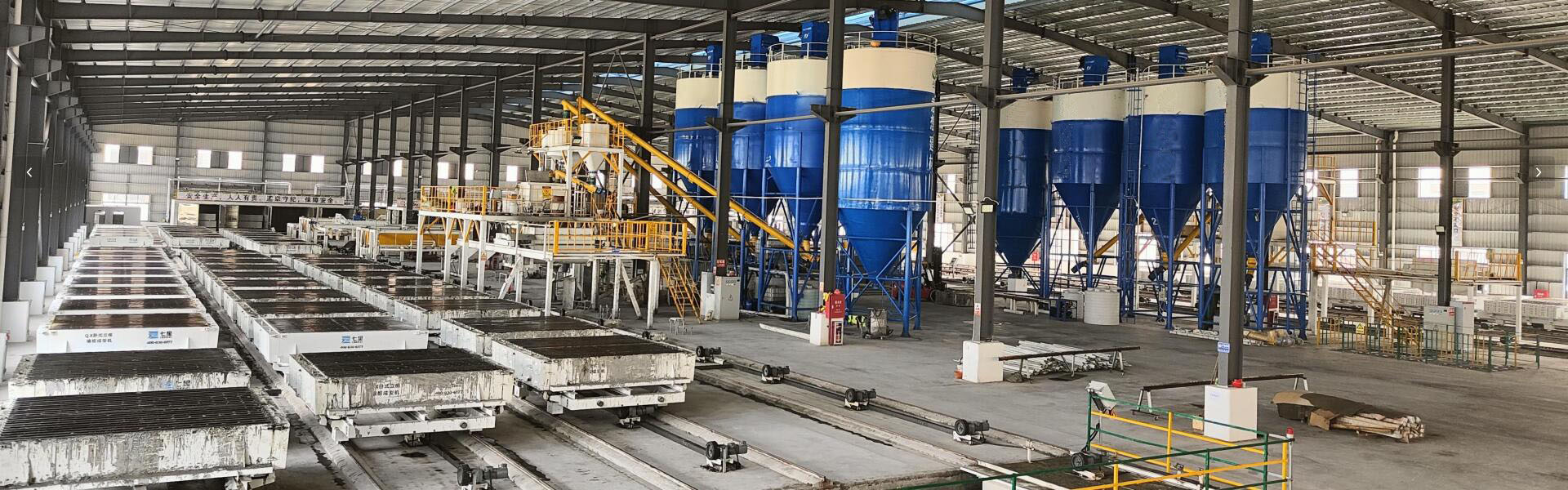

Prefabricated concrete batching plant is used to produce prefabricated concrete components, such as concrete pipes, concrete pavers, lightweight panel walls, etc.
| Model | HZS50 | HZS75 | HZS100 | HZS150 | ||
|---|---|---|---|---|---|---|
| Theoretical productivity(m³/h)(Calculated by C30 ordinary commercial concrete) | 50 | 75 | 100 | 150 | ||
| Mixer | Planetary | Model | JN1000 | JN1500 | JN2000 | JN3000 |
| Discharge volume (L) | 1000 | 1500 | 2000 | 3000 | ||
| Discharge gate numbers | 1 or 2 | 1 or 2 or 3 | ||||
| Aggregate size (mm) | ≤60 | |||||
| Planetary | Model | JN1000 | JN1500 | JN2000 | JN3000 | |
| Discharge volume (L) | 1000 | 1500 | 2000 | 3000 | ||
| Discharge gate numbers | 1 or 2 | |||||
| Aggregate size (mm) | ≤60 | ≤80 | ||||
| Batching station (semi-under ground type) | Bin volume (m³) | 15×4 | 20×4 | 30×4 | ||
| Conveyor capacity of inclined belt conveyor(t/h) | 450 | 500 | 600 | |||
| Scale range & accuracy | Stone scale (kg) | (400-1200)±2% | (600-1800)±2% | (800-2400)±2% | (1200-3600)±2% | |
| Sand scale (kg) | (250-800)±2% | (400-1200)±2% | (500-1600)±2% | (800-2400)±2% | ||
| Cement scale (kg) | (200-600)±1% | (300-900)±1% | (400-1200)±1% | (600-1800)±1% | ||
| Cement scale (kg) | (60-200)±1% | (100-300)±1% | (130-400)±1% | (200-600)±1% | ||
| Water scale (kg) | (100-300)±1% | (150-500)±1% | (150-500)±1% | (250-800)±1% | ||
| Additive scale (kg) | (15-50)±1% | |||||
| Dischargeheight (m) | According to the project requirement | |||||
- A heavy-duty and stable main frame can minimize the vibration of the scale, achieving extremely high durability, safe transportation, continuous and long-lasting operation, and sensitive weighing.
- Fixed prefabricated components have high configurability and are suitable for specific applications. Design engineers develop unique solutions based on customer needs. We also offer complex solutions, including allocation, bucket flying, crane systems, and personalized requirements.
- The control room of PC-60 can be installed on the main frame, which can better check the unloading area, belt condition or hopper position, and aggregate bin condition.
- A fast moving and maintenance free transfer hopper with a capacity of 0.5/1.0/2.0 cubic meters can be transported in the prefabrication plant area. Belt transmission options are also available
- High quality mixing can be achieved through additional mixing hoppers. The micro feeder ensures precise pigment dosage to achieve color consistency. The hopper can accommodate up to 4 different colors.
- The wide platform facilitates convenient and safe maintenance of the main components of the mixer and weighing hopper. Including an upper level platform for scale services.
- Strict production process
Raw material rust removal, laser cutting, one layer of primer, three layers of topcoat (or hot-dip galvanizing) - Durable and sturdy
The heavy-duty H-beam chassis reduces the impact of vibration symmetry during the production process. The batching machine and weighing hopper are made of 6mm steel plate, and the water and gas pipelines are made of galvanized pipes - 7 * 24-hour work
Excellent performance accessories are the guarantee for long-term operation of equipment: BHS or SICOMA concrete mixers, ABB or Marathon motors, WAM powder accessories, AIRTAC pneumatic components, Schneider Electric - Control system saves 50% -70% of operators
Control software can enable one computer to control two production lines or three production lines. By using Ethernet cables to transmit signals, remote operation and production can be achieved
1. Design your own concrete mixing plant based on site and functional requirements
2. For those with manufacturing capabilities, JHT can provide technical drawings (overall or partial); Reduce transportation and procurement costs
3. Renovation of old concrete mixing plants: will increase productivity by 10-20%.
JHT adopts decentralized shared production; Centralized procurement of supporting parts; We have achieved a low price, high-quality service system.
