The construction waste raw materials enter the crusher from the feeder for crushing. The crushed materials are sent to the screening station by belt conveyor (there is an iron removal device above the belt conveyor to remove iron while conveying). After screening by the screening station, four types of materials are produced, namely 0-5mm, 5-10mm, 10-15mm, and >15mm (designed according to customer needs). Among them, the 5-10mm and 10-15mm materials are light material treated before discharging, and the >15mm materials re-enter the crushing to form a closed-loop cycle.

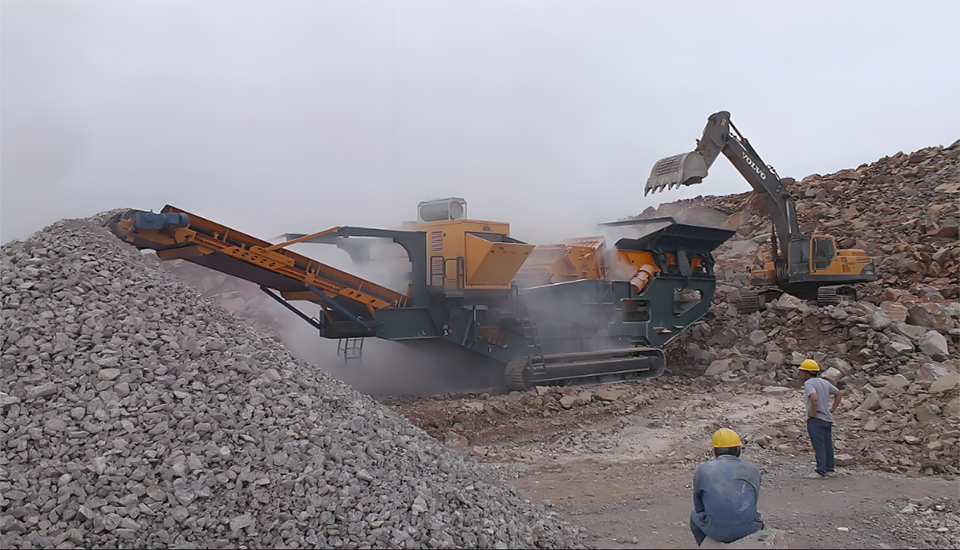

The construction waste sorting machine processes concrete blocks, waste bricks, mortar, slag, etc. in the garbage at the construction waste site. After crushing according to construction needs, reusable aggregates and a small amount of steel bars can be obtained. The coarse aggregate is used directly as crushed stone for foundation reinforcement, road cushions, and indoor floor cushions; the fine aggregate can be made into hollow bricks, solid bricks, square bricks, construction waste concrete porous bricks and other environmentally friendly bricks.
