SCREW CONVEYORS

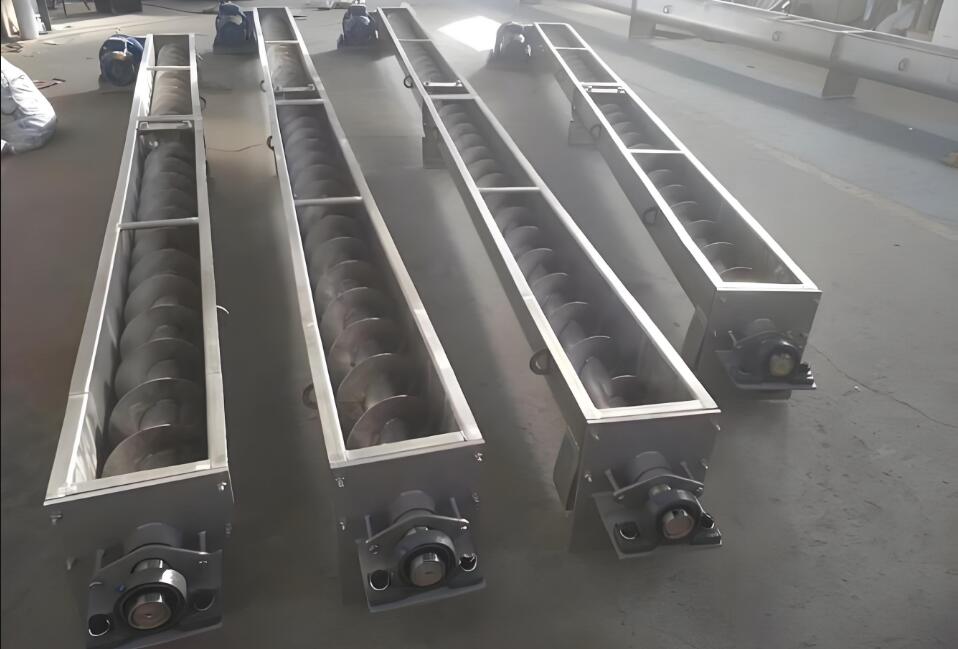

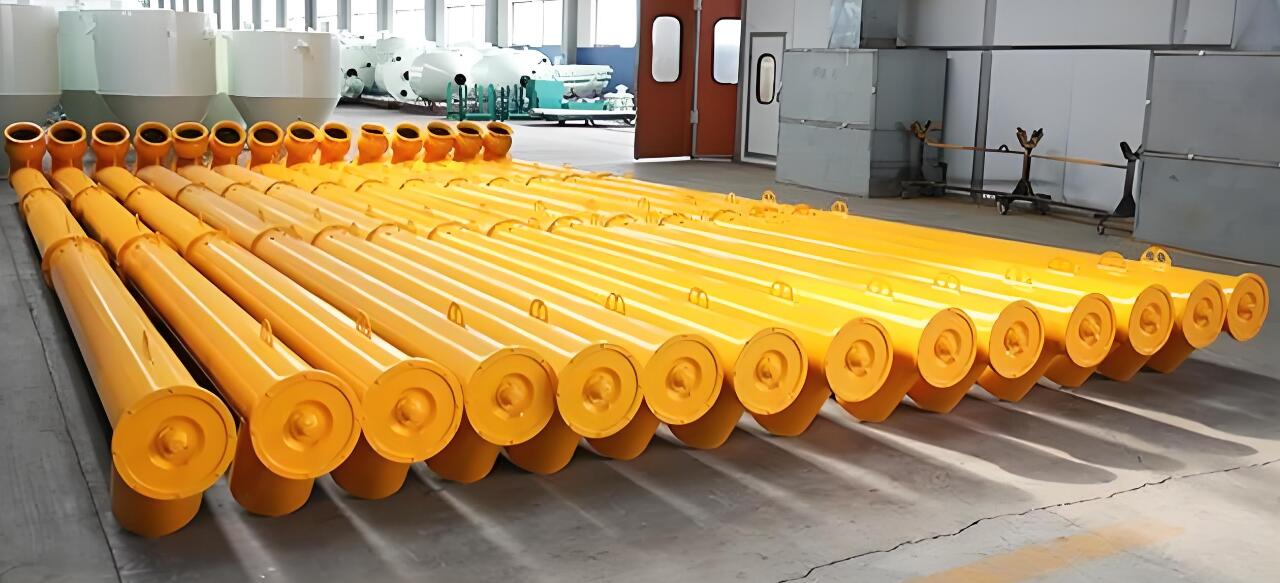

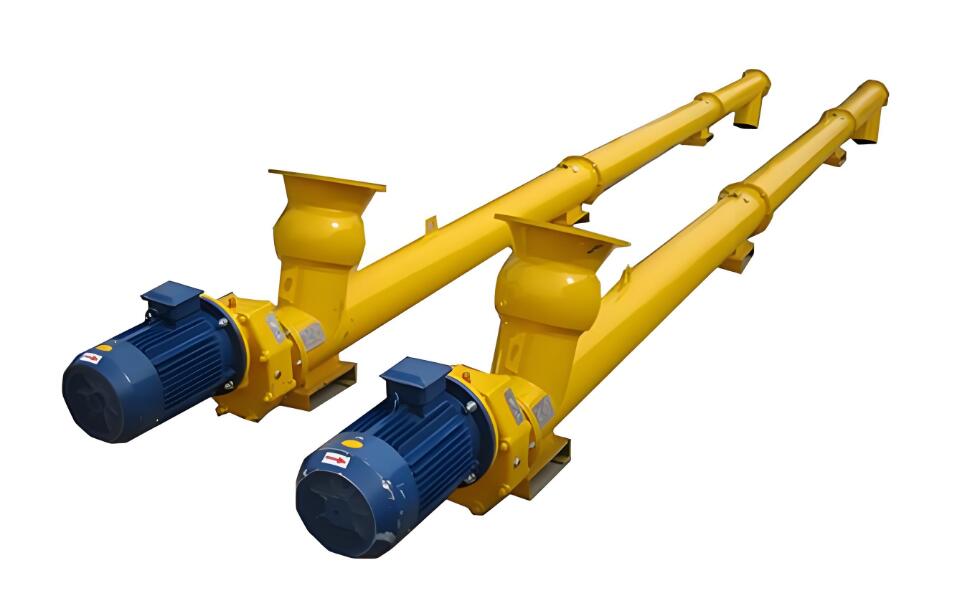

Screw conveyors are mainly used for conveying powders, particles, and small materials with certain fluidity. Our spiral machine is currently widely used in concrete mixing plants, asphalt mixing plants, feed, chemical and other industries; It can be used for transporting various materials such as cement, fly ash, mineral powder, sand, ice, etc. Product features: Made of high-quality steel pipes, with good overall rigidity. Double pitch blades can reduce the degree of compression during material transportation. Adopting high-quality gearbox, heavy-duty design, with high torque, low noise and other characteristics. Optional universal joint for easy installation and adjustment of the steering device. Equipped with high-quality suspension bearings and tail bearings, easy to install.

SCREW CONVEYORS / TECHNICAL SPECIFICATIONS

Diameter	Ф168	Ф219	Ф273	Ф323	Ф407
Conveying rate	24t/h	40t/h	80t/h	110t/h h	170t/h
	1500-5-28-4	1500-5-28-4	2000-7-38-5.5	2000-7-38-7.5	3000-10-42-15
	1500-5-28-4	1500-5-28-4	2000-7-38-5.5	2000-7-38-7.5	3000-10-42-15
	1500-5-28-4	1500-5-38-5.5	2000-7-38-7.5	2000-7-42-11	3000-10-42-15
	1500-5-28-4	1500-5-38-5.5	2000-7-38-7.5	2000-7-42-11	3000-10-42-15
	1500-5-38-5.5	1500-5-38-7.5	2000-7-42-11	3000-10-42-15	3000-10-48-18.5
	1500-5-38-5.5	1500-5-38-7.5	2000-7-42-11	3000-10-48-18.5	3000-10-48-18.5
	1500-5-38-7.5	1500-5-42-11	2000-7-42-15	3000-10-48-18.5	3000-10-48-22
	1500-5-38-7.5	1500-5-42-11	2000-7-42-15	3000-10-48-22	3000-10-48-22
	1500-5-38-7.5	1500-5-42-11	2000-7-42-15	3000-10-48-22	3000-10-60-37
	1500-5-38-7.5	1500-5-42-11	3000-7-42-15	3000-10-48-22	3000-10-60-37
	1500-5-38-7.5	1500-5-42-11	3000-7-48-18.5	3000-10-48-22	3000-10-60-37
	1500-5-38-7.5	1500-5-42-15	3000-7-48-18.5	3000-10-48-30	3000-10-60-37
	1500-5-38-7.5	1500-5-42-15	3000-7-48-18.5	3000-10-48-30
		1500-5-42-15	3000-7-48-18.5	3000-10-48-30

HIGHLIGHTS / SCREW CONVEYORS

Using high-quality steel pipes, the overall rigidity is good.
Double pitch blades can reduce the degree of compression during material transportation.
Adopting high-quality gearbox, heavy-duty design, with high torque, low noise and other characteristics.
Optional universal ball joint for easy installation and adjustment of the steering device.
Equipped with high-quality suspension bearings and tail bearings, easy to install.
Adequate spare parts with complete specifications.
Commonly used diameters of 114, 168, 219, 273, 323, and 407 are all in stock and can be customized in size and angle according to customer requirements.
Standard component assembly for easy transportation.
Equipped with optional high temperature and room temperature configurations.

WHY CHOOSE JHT?

Strict production process
Raw material rust removal, laser cutting, one layer of primer, three layers of topcoat (or hot-dip galvanizing)
Durable and sturdy
The heavy-duty H-beam chassis reduces the impact of vibration symmetry during the production process. The batching machine and weighing hopper are made of 6mm steel plate, and the water and gas pipelines are made of galvanized pipes
7 * 24-hour work
Excellent performance accessories are the guarantee for long-term operation of equipment: BHS or SICOMA concrete mixers, ABB or Marathon motors, WAM powder accessories, AIRTAC pneumatic components, Schneider Electric
Control system saves 50% -70% of operators
Control software can enable one computer to control two production lines or three production lines. By using Ethernet cables to transmit signals, remote operation and production can be achieved

WHAT CAN JHT DO FOR YOU?

1. Design your own concrete mixing plant based on site and functional requirements
2. For those with manufacturing capabilities, JHT can provide technical drawings (overall or partial); Reduce transportation and procurement costs
3. Renovation of old concrete mixing plants: will increase productivity by 10-20%.
JHT adopts decentralized shared production; Centralized procurement of supporting parts; We have achieved a low price, high-quality service system.
