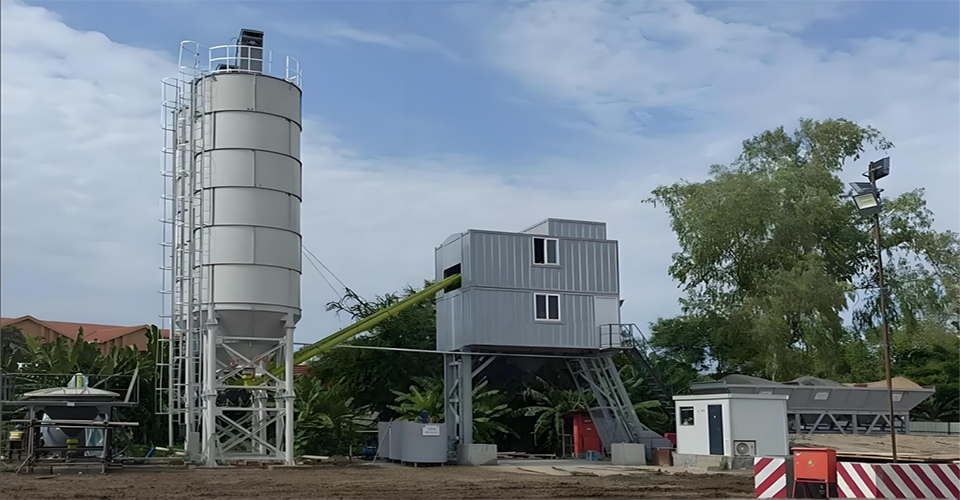

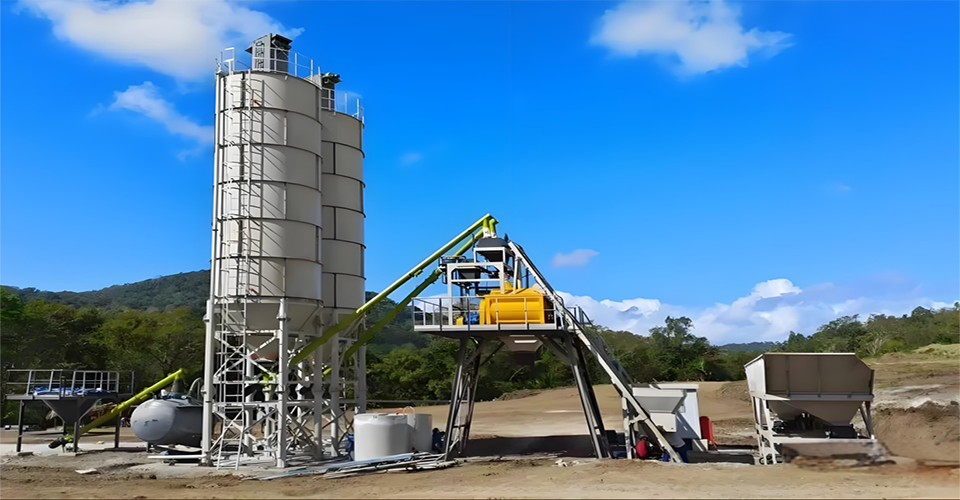

JHT Skip type concrete batching plants adopts German accessories to ensure 7 * 24-hour operation. Widely used in medium-sized construction, road and bridge engineering, as well as precast concrete plants, it has many advantages such as simple design, fast installation, and land saving, making it an ideal choice for construction units to produce high-quality concrete.

TECHNICAL SPECIFICATIONS

Model		HZSD50	HZSD75	HZSD100	HZSD150
Theoretical productivity(m³/h)		40	60	80	120
Mixer	Model	JS1000	JS1500	JS2000	JS3000
	Power(kW)	18.5×2	30×2	37×2	55×2
	Discharge volume(L)	1000L	1500L	2000L	3000L
	Aggregate size(mm)	≤60mm		≤80mm
Batch station	Bin volume(m³)	15×4		20×4	30×4
Bucket power(kW)		18.5kW	22kW	37kW	45kW
Bucket lifting speed(m/s)		0.45
Scale rang & accuracy	Stone scale(kg)	(360-1200)±2%	(540-1800)±2%	(720-2400)±2%	(1080-3600)±2%
	Sand scale(kg)	(240-800)±2%	(360-1200)±2%	(480-1600)±2%	(1080-3600)±2%
	Cement scale(kg)	(180-600)±1%	(270-900)±1%	(360-1200)±1%	(540-1800)±1%
	Fly ash scale(kg)	(60-200)±1%	(90-300)±1%	(120-400)±1%	(180-600)±1%
	Water scale(kg)	(90-300)±1%	(150-500)±1%	(150-500)±1%	(240-800)±1%
	Additive scale(kg)	(15-50)±1%			(24-80)±1%
Discharging height (m)		4.1m

PRODUCT HIGHLIGHTS

Mixing machine
The mixing efficiency of twin-screw belt mixer is 15% higher than that of ordinary mixer. The average strength of concrete has increased by 10%. In terms of energy consumption, it saves 20% compared to conventional forced mixing. Can produce any type of concrete (precast concrete, CVC, ready mixed concrete).
Precision measurement and weighing system
The high-precision measurement system can accurately weigh cement, powder, additives, and sand and gravel materials, effectively ensuring the quality and safety of concrete (all weighing is equipped with a secondary weighing system).
Hot dip galvanized structure
Fully galvanized heavy-duty steel structure (without foundation design) can achieve extremely high durability, safe transportation, and continuous long-term operation. Minimize the vibration of the scale to achieve sensitive weighing.
Intelligent powder conveying system
At the ash discharge port, there is a screen that can accurately display the inventory of powder at the ash discharge port, allowing staff to have a more timely and intuitive understanding of the warehouse’s storage capacity, thereby guiding whether to feed and ensuring smooth production.
Maintenance free control system
The porting of control software does not require installation and can be directly copied and used, reducing maintenance difficulty, lowering maintenance costs, shortening maintenance time, and quickly meeting transformation needs.
Suitable for container transportation
Worried about transportation costs? Don’t worry about being too far away or having high transportation costs to supply or purchase suitable concrete mixing plants, as our design is compact and suitable for standard 40’OT containers.

WHY CHOOSE JHT?

Strict production process
Raw material rust removal, laser cutting, one layer of primer, three layers of topcoat (or hot-dip galvanizing)
Durable and sturdy
The heavy-duty H-beam chassis reduces the impact of vibration symmetry during the production process. The batching machine and weighing hopper are made of 6mm steel plate, and the water and gas pipelines are made of galvanized pipes
7 * 24-hour work
Excellent performance accessories are the guarantee for long-term operation of equipment: BHS or SICOMA concrete mixers, ABB or Marathon motors, WAM powder accessories, AIRTAC pneumatic components, Schneider Electric
Control system saves 50% -70% of operators
Control software can enable one computer to control two production lines or three production lines. By using Ethernet cables to transmit signals, remote operation and production can be achieved

WHAT CAN JHT DO FOR YOU?

1. Design your own concrete mixing plant based on site and functional requirements
2. For those with manufacturing capabilities, JHT can provide technical drawings (overall or partial); Reduce transportation and procurement costs
3. Renovation of old concrete mixing plants: will increase productivity by 10-20%.
JHT adopts decentralized shared production; Centralized procurement of supporting parts; We have achieved a low price, high-quality service system.
